Dual 12-bit Analog-to-Digital Converter (ADC) offering a 3.2GS/s sampling rate. Features 2 analog inputs with a 12-bit resolution and bipolar polarity. Operates with a 1.8V to 2V supply voltage, consuming 3.8W of power. Interface options include LVDS and Parallel. Packaged in a 292-BGA for surface mounting, with tin/silver contact plating and RoHS compliance.
PackageBGA
MountingSurface Mount
PolarityBipolar
Power3.88W
Quick Jump:
Technical Specifications
Texas Instruments ADC12D1600CIUT/NOPB technical specifications.
General
Package/Case
BGA
Contact Plating
Tin, Silver
Conversion Rate
3.2GS/s
Differential Nonlinearity
0.4LSB
Integral Nonlinearity (INL)
2.5LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
4.37W
Max Supply Voltage
2V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Converters
2
Number of Elements
2
Number of Inputs
21
Operating Supply Voltage
1.9V
Packaging
Tray
Polarity
Bipolar
Power Consumption
3.88W
Power Dissipation
3.8W
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
3.2GS/s
Signal to Noise Ratio (SNR)
54.6dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC12D1600CIUT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12D1600CIUT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

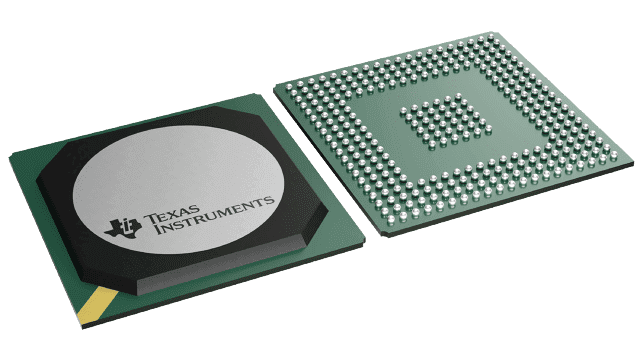

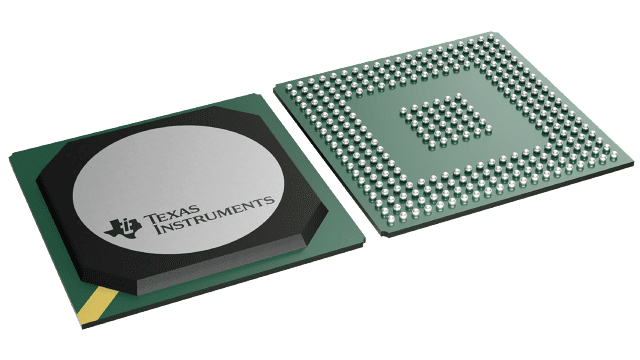

Product Images
