Texas Instruments
ADC12D1600RFIUT
12-bit, dual 1.6-GSPS or single 3.2-GSPS, RF-sampling analog-to-digital converter (ADC) 292-BGA -40 to 85
PackageBGA
MountingSurface Mount
Power3.88W
Quick Jump:
Technical Specifications
Texas Instruments ADC12D1600RFIUT technical specifications.
General
| Package/Case | BGA |
| Conversion Rate | 3.2GS/s |
| Input Type | DIFFERENTIAL |
| Interface | LVDS, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.37W |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Converters | 2 |
| Number of Inputs | 21 |
| Operating Supply Voltage | 2V |
| Packaging | Rail/Tube |
| Power Consumption | 3.88W |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 3.2GS/s |
| Signal to Noise Ratio (SNR) | 54.6dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments ADC12D1600RFIUT Datasheet
Download the complete datasheet for Texas Instruments ADC12D1600RFIUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

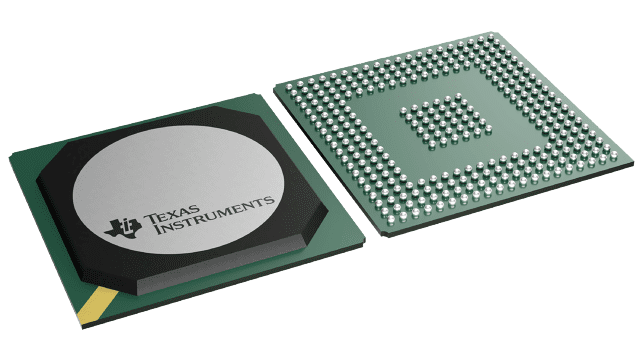

Product Images
