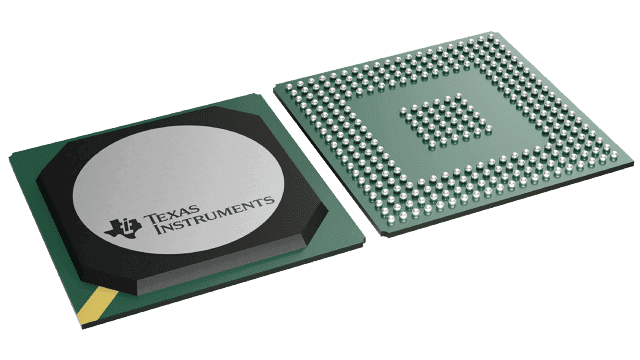

12-bit dual analog-to-digital converter (ADC) supporting 1.8GSPS per channel or a single 3.6GSPS conversion rate. Features include a 3.6GS/s sampling rate, 2 analog inputs, and LVDS/Parallel interface. Achieves 0.4LSB differential nonlinearity and 2.5LSB integral nonlinearity, with a signal-to-noise ratio of 58.5dB. Operates from a 1.8V to 2V supply voltage, housed in a 292-BGA package for surface mounting, with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADC12D1800CIUT/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments ADC12D1800CIUT/NOPB technical specifications.
| Package/Case | BGA |
| Contact Plating | Tin, Silver |
| Conversion Rate | 3.6GS/s |
| Differential Nonlinearity | 0.4LSB |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.95W |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Inputs | 21 |
| Packaging | Tray |
| Power Consumption | 4.18W |
| Power Dissipation | 4.1W |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.6GS/s |
| Signal to Noise Ratio (SNR) | 58.5dB |
| Supply Type | Single |
| RoHS | Compliant |
