Dual 1.8GSPS or Single 3.6GSPS RF-sampling analog-to-digital converter (ADC) with 12-bit resolution. Features differential input type, LVDS and parallel interface, and a maximum sampling rate of 3.6GS/s. Offers 2.5LSB integral nonlinearity and 58.5dB signal-to-noise ratio. Operates from a 1.8V to 2V supply voltage with a maximum power dissipation of 4.95W. Surface mountable in a BGA package, with an operating temperature range of -40°C to 85°C.
PackageBGA
MountingSurface Mount
Power4.4W
Quick Jump:
Technical Specifications
Texas Instruments ADC12D1800RFIUT technical specifications.
General
| Package/Case | BGA |
| Conversion Rate | 3.6GS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.95W |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 21 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Consumption | 4.4W |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 3.6GS/s |
| Signal to Noise Ratio (SNR) | 58.5dB |
| Supply Type | Single |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments ADC12D1800RFIUT Datasheet
Download the complete datasheet for Texas Instruments ADC12D1800RFIUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

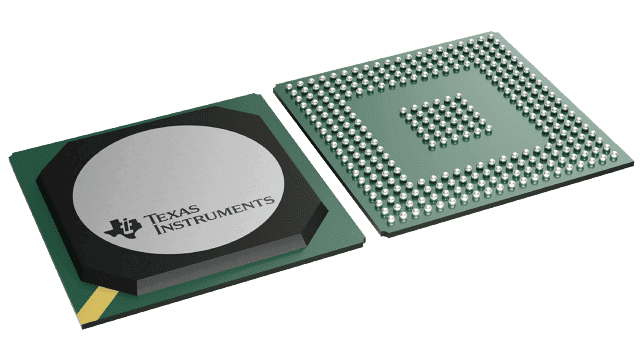

Product Images
