12-bit, dual 1.8GSPS or single 3.6GSPS RF-sampling analog-to-digital converter (ADC). Features a 3.6GS/s conversion rate, 2 differential analog inputs, and LVDS/Parallel interface. Offers 0.4LSB DNL and 2.5LSB INL, with a signal-to-noise ratio of 58.5dB. Operates from a 1.8V to 2V supply, with a maximum power dissipation of 4.95W. Packaged in a 292-BGA for surface mounting, with tin/silver contact plating.
PackageBGA
MountingSurface Mount
Power4.4W
Quick Jump:
Technical Specifications
Texas Instruments ADC12D1800RFIUT/NOPB technical specifications.
General
| Package/Case | BGA |
| Contact Plating | Tin, Silver |
| Conversion Rate | 3.6GS/s |
| Differential Nonlinearity | 0.4LSB |
| Evaluation Kit | Yes |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.95W |
| Max Supply Voltage | 2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 21 |
| Packaging | Tray |
| Power Consumption | 4.4W |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 3.6GS/s |
| Signal to Noise Ratio (SNR) | 58.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC12D1800RFIUT/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12D1800RFIUT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

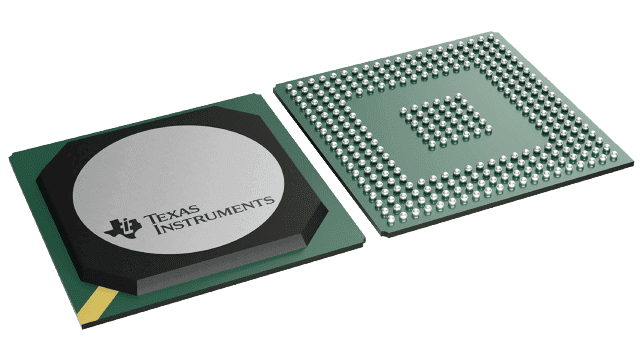

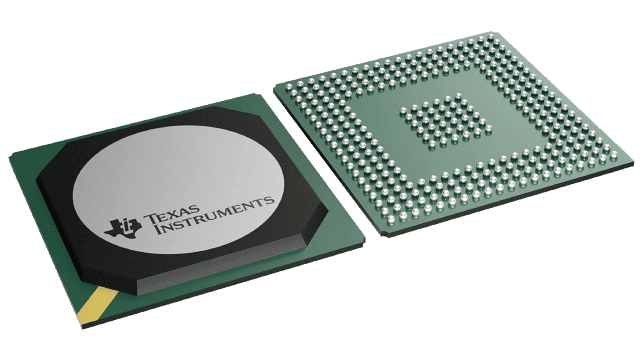

Product Images
