Texas Instruments
ADC12D800RFIUT
12-Bit, Dual 800-MSPS or Single 1.6-GSPS, RF Sampling Analog-to-Digital Converter (ADC) 292-BGA -40 to 85
PackageBGA
MountingSurface Mount
Power2.5W
Quick Jump:
Technical Specifications
Texas Instruments ADC12D800RFIUT technical specifications.
General
Package/Case
BGA
Conversion Rate
1.6GS/s
Input Type
DIFFERENTIAL
Interface
LVDS, Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
3.45W
Mount
Surface Mount
Number of A/D Converters
2
Number of Bits
12
Number of Converters
2
Number of Inputs
21
Operating Supply Voltage
2V
Package Quantity
40
Packaging
Rail/Tube
Power Consumption
2.5W
Resolution
12b
RoHS Compliant
No
Signal to Noise Ratio (SNR)
57.5dB
Supply Type
Single
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments ADC12D800RFIUT Datasheet
Download the complete datasheet for Texas Instruments ADC12D800RFIUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

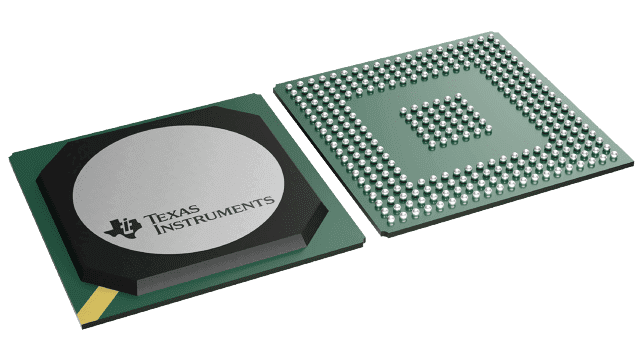

Product Images
