Texas Instruments
ADC12DC105CISQE/NOPB
12-Bit 105MSPS Dual-Channel ADC, Parallel Interface, 1.1LSB INL
Dual-channel, 12-bit analog-to-digital converter (ADC) with a 105 MSPS conversion rate and 1.0 GHz input bandwidth. Features differential inputs, a parallel interface, and a 1.1 LSB integral nonlinearity. Operates from a 2.7V to 3.6V supply with a nominal current of 242mA. This surface-mount component offers a 71 dB signal-to-noise ratio and is RoHS compliant.
PackageTQFP
MountingSurface Mount
PolarityBipolar
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12DC105CISQE/NOPB technical specifications.
General
| Package/Case | TQFP |
| Conversion Rate | 105000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -45°C |
| Max Power Dissipation | 525mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 242mA |
| Number of Bits | 11 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 800mW |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 200000000S/s |
| Series | PowerWise® |
| Signal to Noise Ratio (SNR) | 71dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADC12DC105CISQE/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12DC105CISQE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

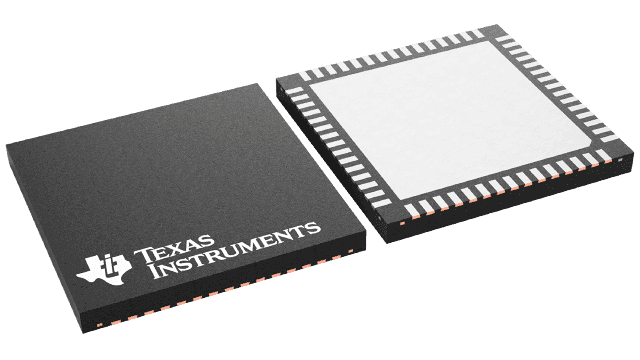

Product Images
