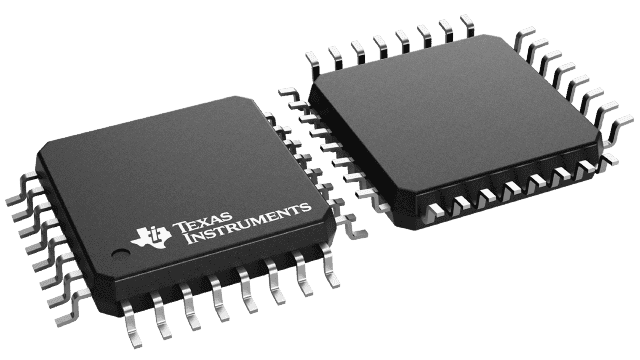

12-bit, 62 MSPS Analog-to-Digital Converter (ADC) with a differential input type. Features 0.5 LSB DNL and 2.4 LSB INL for precise conversion. Operates from a 3V to 3.6V supply voltage, consuming 354mW. Encased in a 32-LQFP package with tin contact plating, suitable for surface mounting. Offers a 66dB SNR and a bipolar polarity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADC12L063CIVY/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments ADC12L063CIVY/NOPB technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin |
| Conversion Rate | 62000KS/s |
| Differential Nonlinearity | 0.5LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.4LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 354mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 62MS/s |
| Signal to Noise Ratio (SNR) | 66dB |
| Supply Type | Analog, Digital |
| RoHS | Compliant |
