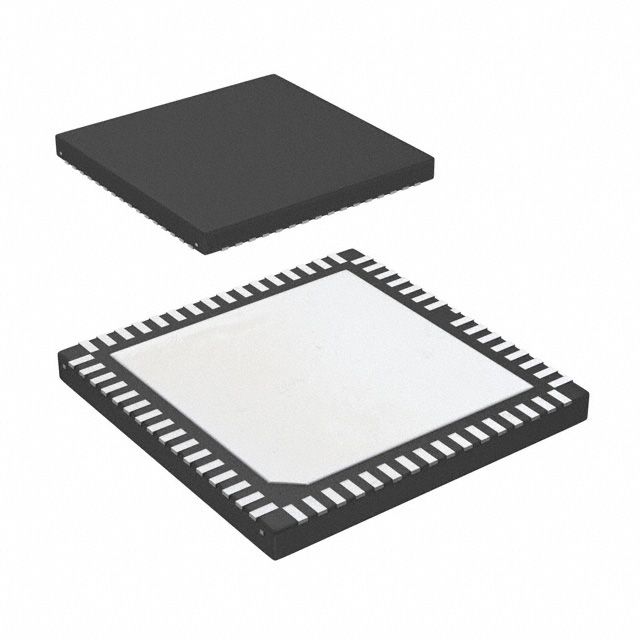

Quad-channel, 12-bit analog-to-digital converter (ADC) with a sampling rate of 65 MS/s. Features LVDS and serial interfaces, 1.4 LSB integral nonlinearity, and 69.3 dB signal-to-noise ratio. Operates from a 3.3V supply with a maximum power dissipation of 990mW. Packaged in a 9x9mm QCC-60 surface-mount package with 0.8mm height and 0.50mm pitch. Suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADC12QS065CISQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments ADC12QS065CISQ technical specifications.
| Conversion Rate | 65000KS/s |
| Height | 0.8mm |
| Integral Nonlinearity (INL) | 1.4LSB |
| Interface | LVDS, Serial |
| Lead Free | Contains Lead |
| Length | 9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 990mW |
| Mount | Surface Mount |
| Number of A/D Converters | 4 |
| Number of Analog Inputs | 4 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 828mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 65000000S/s |
| Signal to Noise Ratio (SNR) | 69.3dB |
| Supply Type | Analog, Digital |
| Width | 9mm |
| RoHS | Not CompliantNo |
