Quad-channel, 12-bit analog-to-digital converter (ADC) with a 65 MSPS sampling rate. Features LVDS and serial interfaces, 1.4 LSB integral nonlinearity, and 0.7 LSB differential nonlinearity. Operates from a 3V to 3.6V supply, with a typical power consumption of 828mW. This surface mount component is housed in a 60-WQFN package and operates across a -40°C to 85°C temperature range.
MountingSurface Mount
PolarityBipolar
Power828mW
Quick Jump:
Technical Specifications
Texas Instruments ADC12QS065CISQ/NOPB technical specifications.
General
Contact Plating
Tin, Matte
Conversion Rate
65000KS/s
Differential Nonlinearity
0.7LSB
Integral Nonlinearity (INL)
1.4LSB
Interface
LVDS, Serial
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
830mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
4
Number of Analog Inputs
4
Number of Bits
12
Number of Channels
4
Number of Converters
4
Number of Elements
4
Number of Inputs
4
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
828mW
Power Dissipation
830mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
65MS/s
Signal to Noise Ratio (SNR)
69.3dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC12QS065CISQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC12QS065CISQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

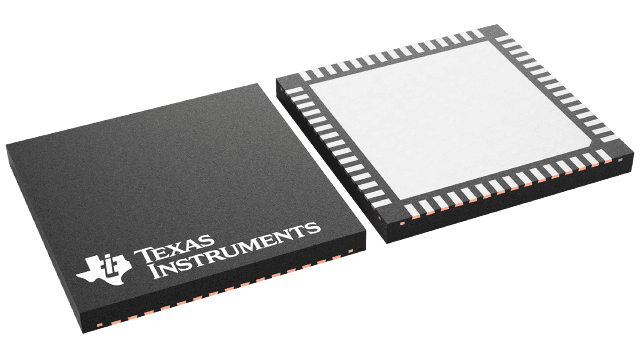

Product Images
