Dual-channel, 16-bit analog-to-digital converter (ADC) with a 160 MSPS sampling rate. Features differential inputs, DDR, LVDS, and parallel interfaces, and a signal-to-noise ratio of 78.5 dB. Offers 1.5 LSB integral nonlinearity and 0.45 LSB differential nonlinearity. Operates from a 1.7V to 3.6V single supply voltage, with a typical power consumption of 1.34W. Packaged in a 68-VQFN with tin, matte contact plating, suitable for surface mounting and operating between -40°C and 85°C.
PackageVQFN
MountingSurface Mount
Power1.34W
Quick Jump:
Technical Specifications

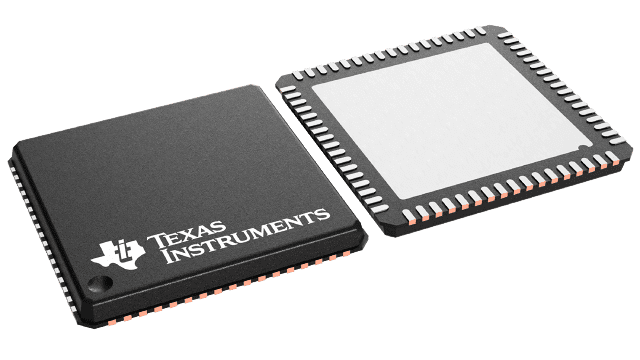

Texas Instruments ADC16DV160CILQX/NOPB technical specifications.
General
Package/Case
VQFN
Contact Plating
Tin, Matte
Conversion Rate
160000KS/s
Differential Nonlinearity
0.45LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.5LSB
Interface
DDR, LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.3W
Max Supply Voltage
3.6V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
16
Number of Channels
2
Number of Converters
3
Number of Inputs
2
Operating Supply Voltage
3.3V
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
1.34W
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
160000000S/s
Signal to Noise Ratio (SNR)
78.5dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADC16DV160CILQX/NOPB Datasheet
Download the complete datasheet for Texas Instruments ADC16DV160CILQX/NOPB to view detailed technical specifications.
