12-bit, 3.3kSPS Delta-Sigma Analog-to-Digital Converter (ADC) with a single input channel. Features include a programmable gain amplifier (PGA), integrated oscillator, voltage reference, and comparator. Operates with a single supply voltage from 2V to 5.5V, with a typical operating voltage of 3.3V. Offers an I2C interface for communication and a bipolar polarity. This lead-free, RoHS-compliant component is supplied in a 10-X2QFN package on tape and reel, with a maximum operating temperature of 125°C.
PolarityBipolar
Power900uW
Quick Jump:
Technical Specifications
Texas Instruments ADS1014IRUGR technical specifications.
General
| Contact Plating | Gold |
| Conversion Rate | 3.3KS/s |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Dissipation | 900uW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 3300S/s |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS1014IRUGR Datasheet
Download the complete datasheet for Texas Instruments ADS1014IRUGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

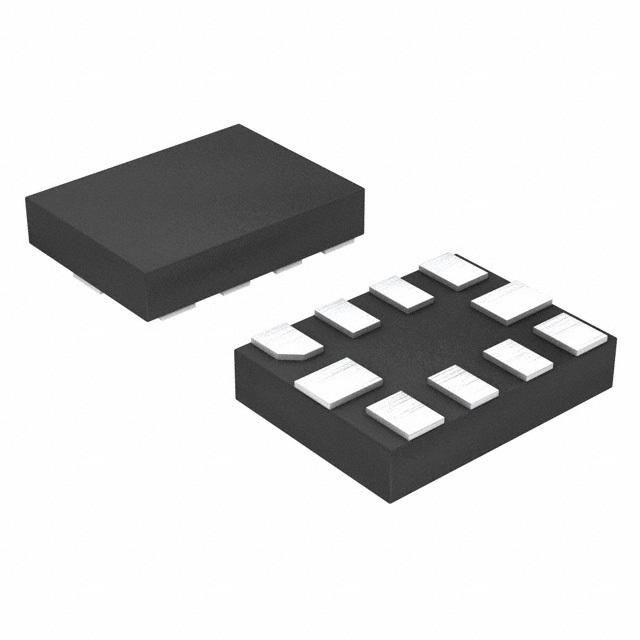

Product Images
