16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
PackageQFN
Current150uA
PolarityBipolar
Power900uW
Quick Jump:
Technical Specifications
Texas Instruments ADS1115IRUGT technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Conversion Rate
860S/s
Height
0.35mm
Integral Nonlinearity (INL)
1LSB
Interface
I2C
Lead Free
Lead Free
Length
2.05mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500uW
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2V
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Number of A/D Converters
1
Number of Bits
16
Number of Channels
4
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Package Quantity
250
Packaging
Tape and Reel
Polarity
Bipolar
Power Dissipation
900uW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
860S/s
Supply Current
150uA
Supply Type
Single
Termination
SMD/SMT
Thickness
370um
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1115IRUGT Datasheet
Download the complete datasheet for Texas Instruments ADS1115IRUGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

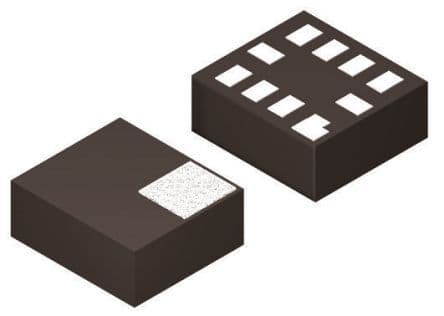

Product Images
