16-bit Delta-Sigma Analog-to-Digital Converter (ADC) with a 125kSPS conversion rate and 1LSB integral and differential nonlinearity. Features 16 analog inputs, supporting bipolar and unipolar polarity. Operates with a dual supply voltage range of 2.25V to 2.75V and a single supply voltage of 4.75V to 5.25V. This surface mount component is housed in a 48-VQFN package with gold contact plating and is RoHS compliant. Ideal for applications requiring fast channel scanning and automatic sequencing.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADS1158IRTCR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

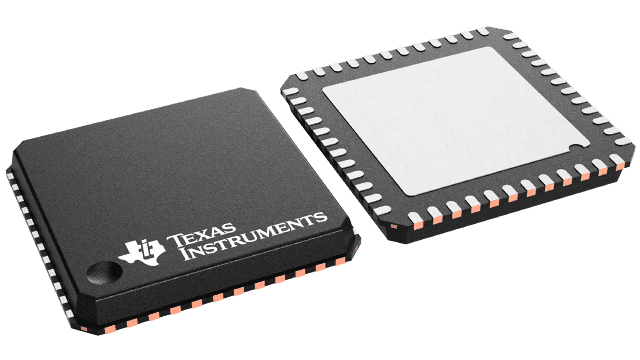

Texas Instruments ADS1158IRTCR technical specifications.
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 125KS/s |
| Differential Nonlinearity | 1LSB |
| Dual Supply Voltage | 2.5V |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 2.75V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 62mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 16 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 42mW |
| Power Dissipation | 42mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 125KS/s |
| Supply Type | Dual, Analog, Digital, Single |
| RoHS | Compliant |
