Analog Front End IC featuring 8 channels and 16-bit resolution, ideal for ECG/EEG applications. Operates with a 1.65V to 3.6V supply range, offering a 97dB signal-to-noise ratio and an 8 kS/s conversion rate. Utilizes an SPI interface and is housed in a lead-free FBGA package with copper, tin, and silver plating. Designed for general-purpose use, this component has a maximum power dissipation of 4.8mW and operates between 0°C and 70°C.
PackageFBGA
Power4.3mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1198CZXGR technical specifications.
General
| Package/Case | FBGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 8KS/s |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 4.8mW |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 1.65V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 1.65V |
| Number of A/D Converters | 8 |
| Number of Bits | 16 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Inputs | 8 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 4.3mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 8KS/s |
| Signal to Noise Ratio (SNR) | 97dB |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS1198CZXGR Datasheet
Download the complete datasheet for Texas Instruments ADS1198CZXGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

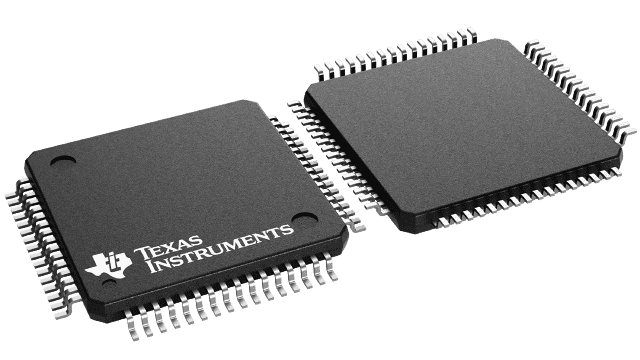

Product Images
