24-bit Analog-to-Digital Converter (ADC) with 8 differential input channels. Features a programmable gain amplifier (PGA) up to 1:128, a 50/60 Hz notch filter, and a sampling rate of 15S/s. Operates with a single supply voltage from 2.7V to 5.25V, consuming a nominal current of 960uA and a power dissipation of 1.2mW. Offers a low differential nonlinearity of 1LSB and an SPI interface. Packaged in a 20-TSSOP with gold contact plating, this RoHS compliant component operates from -40°C to 85°C.
PackageTSSOP
PolarityBipolar
Power1.2mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1243IPWR technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Conversion Rate
0.015KS/s
Differential Nonlinearity
1LSB
Input Type
DIFFERENTIAL
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.9mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Nominal Supply Current
960uA
Number of A/D Converters
1
Number of Bits
24
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Bipolar
Power Dissipation
1.2mW
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
15S/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1243IPWR Datasheet
Download the complete datasheet for Texas Instruments ADS1243IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

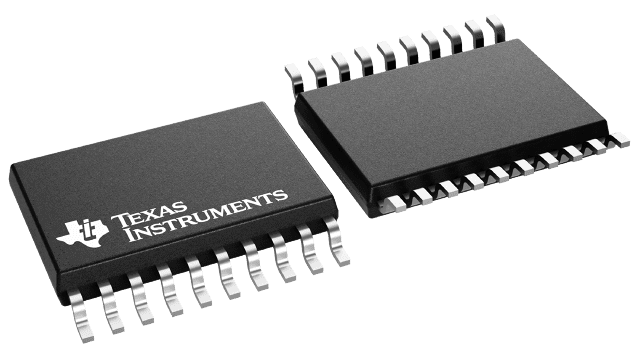

Product Images
