24-bit, 1-channel delta-sigma Analog-to-Digital Converter (ADC) with a 20 kS/s conversion rate. Features differential input, SPI interface, and bipolar polarity. Operates from a single 5V supply, with a maximum power dissipation of 500mW. Packaged in an 8-pin SOIC with gold contact plating, suitable for operation between -40°C and 85°C.
PackageD
PolarityBipolar
Power7.5mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1251U technical specifications.
General
Package/Case
D
Contact Plating
Gold
Conversion Rate
20KS/s
Differential Nonlinearity
1LSB
Input Type
DIFFERENTIAL
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
24
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
7.5mW
Power Dissipation
7.5mW
Power Supply
5V
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
20KS/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1251U Datasheet
Download the complete datasheet for Texas Instruments ADS1251U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

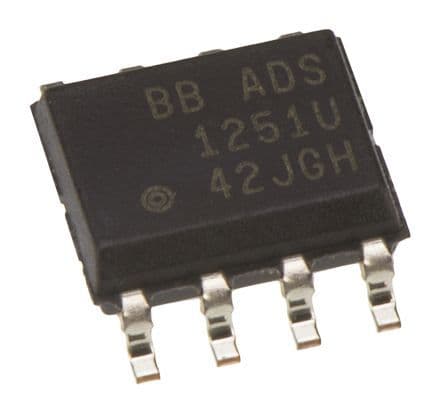

Product Images
