24-bit, 1-channel delta-sigma Analog-to-Digital Converter (ADC) with a 41 kS/s sampling rate. Features differential input, SPI interface, and 1 LSB integral and differential nonlinearity. Operates from a 5V single supply with 40mW power consumption. Packaged in an 8-pin SOIC with gold contact plating, suitable for general-purpose applications.
PackageD
Current8mA
PolarityBipolar
Power40mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1252U technical specifications.
General
Package/Case
D
Contact Plating
Gold
Conversion Rate
41KS/s
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
1LSB
Height
1.58mm
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
50mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
24
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
40mW
Power Dissipation
40mW
Power Supply
5V
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
41KS/s
Supply Current
8mA
Supply Type
Single
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1252U Datasheet
Download the complete datasheet for Texas Instruments ADS1252U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

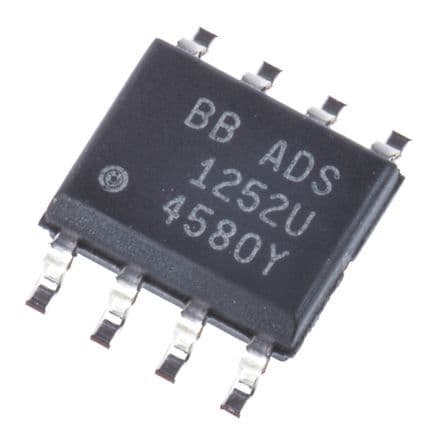

Product Images
