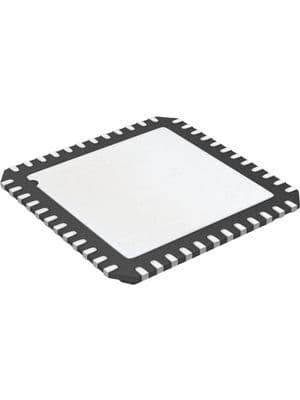

High-precision 24-bit, 16-channel delta-sigma Analog-to-Digital Converter (ADC) with a 125 kS/s sampling rate. Features include 1 LSB differential nonlinearity, bipolar and unipolar input polarity, and SPI serial interface. Operates with dual supply voltages from 2.15V to 2.65V and a single supply voltage range of 4.75V to 5.25V. Packaged in a 48-pin VQFN with gold contact plating, this RoHS compliant component is suitable for surface mount termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADS1258IRTCT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 125KS/s |
| Differential Nonlinearity | 1LSB |
| Dual Supply Voltage | 2.5V |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 2.65V |
| Min Dual Supply Voltage | 2.15V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 62mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Bits | 24 |
| Number of Channels | 16 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 16 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 42mW |
| Power Dissipation | 42mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 125KS/s |
| Supply Current | 8.2mA |
| Supply Type | Analog, Digital, Single, Dual |
| Termination | SMD/SMT |
| RoHS | Compliant |
