Octal, 24-bit, 144kHz delta-sigma Analog-to-Digital Converter (ADC) featuring simultaneous sampling. This integrated circuit offers 8 differential input channels with a 24-bit resolution and 111dB Signal-to-Noise Ratio (SNR). It utilizes an SPI interface for communication and is housed in a 64-HTQFP surface-mount package. Operating across a wide temperature range of -55°C to 125°C, this lead-free and RoHS compliant component has a maximum power dissipation of 785mW.
PackageHTQFP
MountingSurface Mount
Power530mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1278MPAPTEP technical specifications.
General
| Package/Case | HTQFP |
| Input Type | DIFFERENTIAL |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 785mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 24 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Inputs | 8 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 530mW |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 144000S/s |
| Signal to Noise Ratio (SNR) | 111dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS1278MPAPTEP Datasheet
Download the complete datasheet for Texas Instruments ADS1278MPAPTEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

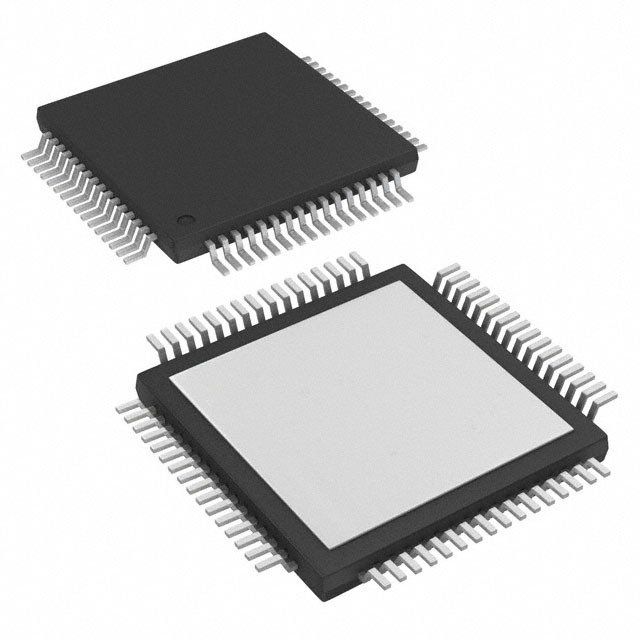

Product Images
