General Purpose Analog Front End (AFE) with 2 differential ADCs, each offering 24-bit resolution. Features a 250µA operating supply current and a 107dB Signal to Noise Ratio (SNR). Supports SPI interface and operates from a 1.7V to 3.6V supply. Packaged in a 32-pin TQFP with gold contact plating, this component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageTQFP
Current250uA
Quick Jump:
Technical Specifications
Texas Instruments ADS1292RIPBS technical specifications.
General
Package/Case
TQFP
Contact Plating
Gold
Conversion Rate
125S/s
Height
1.05mm
Input Type
DIFFERENTIAL
Interface
SPI
Lead Free
Lead Free
Length
5.05mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
950uW
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
1.7V
Max Supply Voltage
5.25V
Min Supply Voltage
1.7V
Number of A/D Converters
2
Number of Bits
24
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Operating Supply Current
250uA
Package Quantity
250
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
8KS/s
Signal to Noise Ratio (SNR)
107dB
Supply Current
250uA
Type
General Purpose
Width
5.05mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1292RIPBS Datasheet
Download the complete datasheet for Texas Instruments ADS1292RIPBS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

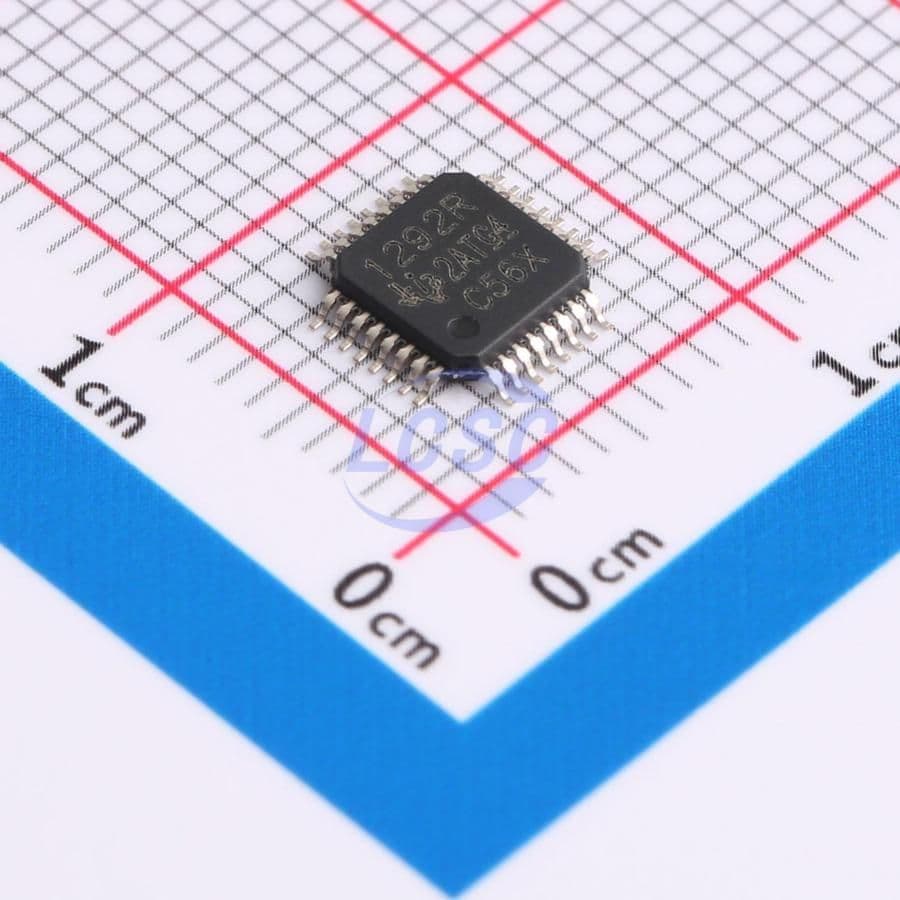

Product Images
