2-channel, 24-bit Analog-to-Digital Converter (ADC) with integrated respiration impedance and ECG front-end. Features a 24-bit resolution and 107dB Signal-to-Noise Ratio (SNR). Operates with a 2.7V to 5.25V supply voltage and a 250µA operating supply current. Supports SPI interface and a sampling rate of up to 8 kS/s. Packaged in a 32-VQFN with gold contact plating, suitable for surface mounting.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments ADS1292RIRSMT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Conversion Rate
125S/s
Input Type
DIFFERENTIAL
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
740uW
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
2
Number of Bits
24
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Operating Supply Current
250uA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
8KS/s
Signal to Noise Ratio (SNR)
107dB
Type
General Purpose
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS1292RIRSMT Datasheet
Download the complete datasheet for Texas Instruments ADS1292RIRSMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

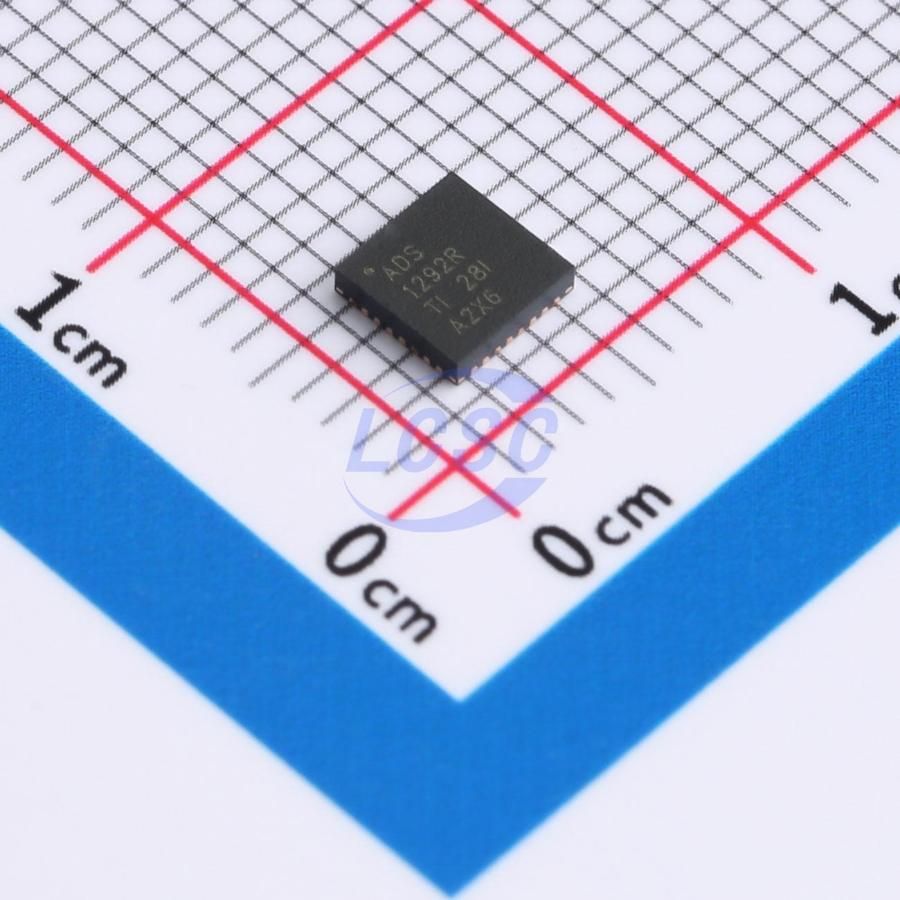

Product Images
