16-bit differential analog-to-digital converter (ADC) with a 5MS/s sampling rate. Features 0.25 LSB differential nonlinearity and 0.75 LSB integral nonlinearity. Operates with a 3.3V maximum supply voltage and offers a 96dB spurious-free dynamic range. Packaged in a 64-HTQFP with gold contact plating, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageHTQFP
PolarityBipolar
Power560mW
Quick Jump:
Technical Specifications
Texas Instruments ADS1606IPAPTG4 technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 5000KS/s |
| Differential Nonlinearity | 0.25LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 0.75LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 710mW |
| Max Supply Voltage (DC) | 3.3V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 110mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 560mW |
| Power Dissipation | 570mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 5MS/s |
| Signal to Noise Ratio (SNR) | 88dB |
| Spurious-free dynamic range (SFDR) | 96dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS1606IPAPTG4 Datasheet
Download the complete datasheet for Texas Instruments ADS1606IPAPTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

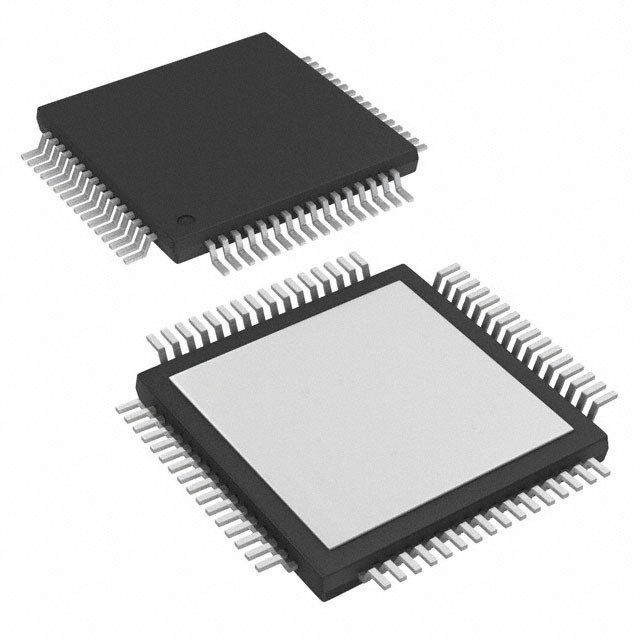

Product Images
