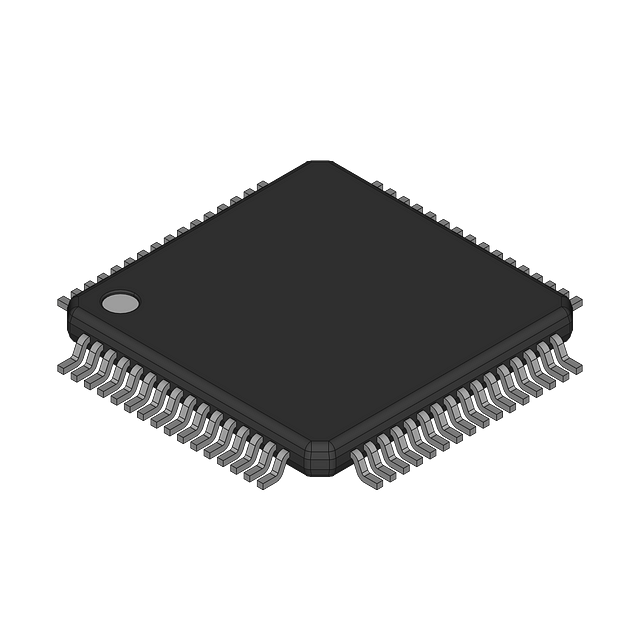

The ADS2806Y/1K5 is a dual 12-bit analog-to-digital converter with a conversion rate of 32000KS/s. It operates from a 5V supply voltage and is packaged in a HTQFP package. The device is RoHS compliant and has a maximum operating temperature of 85°C. It consumes a maximum power dissipation of 475mW and has a nominal supply current of 78mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments ADS2806Y/1K5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments ADS2806Y/1K5 technical specifications.
| Package/Case | HTQFP |
| Conversion Rate | 32000KS/s |
| Input Type | DIFFERENTIAL |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 475mW |
| Nominal Supply Current | 78mA |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 430mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 32000000S/s |
| Signal to Noise Ratio (SNR) | 67dB |
| RoHS | Compliant |
