Dual-channel, 12-bit analog-to-digital converter (ADC) with a 50 MSPS sampling rate. Features differential input, parallel interface, and 65dB Signal-to-Noise Ratio (SNR). Operates with a 3V to 5V supply range and offers 1LSB Differential Nonlinearity (DNL) and 5LSB Integral Nonlinearity (INL). Packaged in a 64-HTQFP with gold contact plating, this RoHS compliant component is supplied on tape and reel.
PackageHTQFP
PolarityBipolar
Power720mW
Quick Jump:
Technical Specifications
Texas Instruments ADS2807Y/250G4 technical specifications.
General
Package/Case
HTQFP
Contact Plating
Gold
Conversion Rate
50000KS/s
Differential Nonlinearity
1LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
760mW
Max Supply Voltage (DC)
5V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
134mA
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Package Quantity
250
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
720mW
Power Dissipation
740mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
50000000S/s
Signal to Noise Ratio (SNR)
65dB
Spurious-free dynamic range (SFDR)
70dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS2807Y/250G4 Datasheet
Download the complete datasheet for Texas Instruments ADS2807Y/250G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

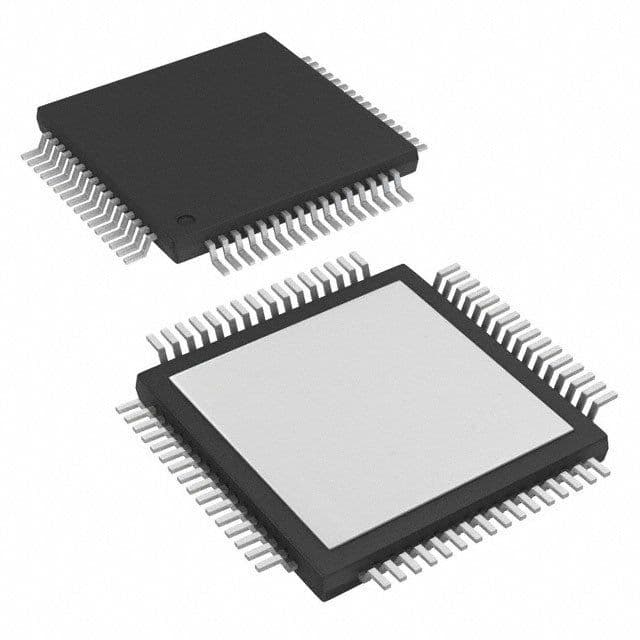

Product Images
