Texas Instruments
ADS4142IRGZT
14-bit 65MSPS ADC, Differential Input, DDR/LVDS/Parallel Interface, VQFN
14-bit Analog-to-Digital Converter (ADC) with a 65 MSPS sampling rate. Features differential input and a parallel, DDR, or LVDS interface. Offers 4.5 LSB Integral Nonlinearity and operates from a 1.7V to 1.9V supply. Packaged in a 48-VQFN with gold contact plating, suitable for surface mounting. RoHS compliant and operates within a -40°C to 85°C temperature range.
PackageVQFN
MountingSurface Mount
Power95mW
Quick Jump:
Technical Specifications
Texas Instruments ADS4142IRGZT technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 65MS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4.5LSB |
| Interface | DDR, LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 10mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 95mW |
| Power Dissipation | 76mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 65000000S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS4142IRGZT Datasheet
Download the complete datasheet for Texas Instruments ADS4142IRGZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

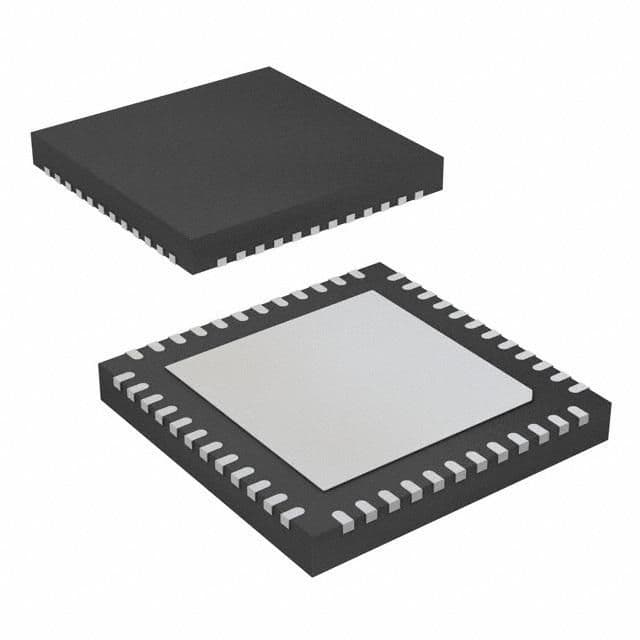

Product Images
