Texas Instruments
ADS41B25IRGZR
12-Bit 125MSPS ADC, Differential Input, DDR/LVDS/Parallel Interface, VQFN
12-bit, 125 MSPS Analog-to-Digital Converter (ADC) with a single differential analog input. Features DDR, LVDS, and Parallel interfaces, with a 12-bit resolution. Operates across a -40°C to 85°C temperature range, utilizing a 1.7V to 1.9V supply voltage. Packaged in a 48-VQFN with gold contact plating, this lead-free, RoHS compliant component is designed for surface mounting.
PackageVQFN
MountingSurface Mount
Power310mW
Quick Jump:
Technical Specifications
Texas Instruments ADS41B25IRGZR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 125MS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 3.5LSB |
| Interface | DDR, LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Consumption | 310mW |
| Power Dissipation | 114mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 125000000S/s |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS41B25IRGZR Datasheet
Download the complete datasheet for Texas Instruments ADS41B25IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

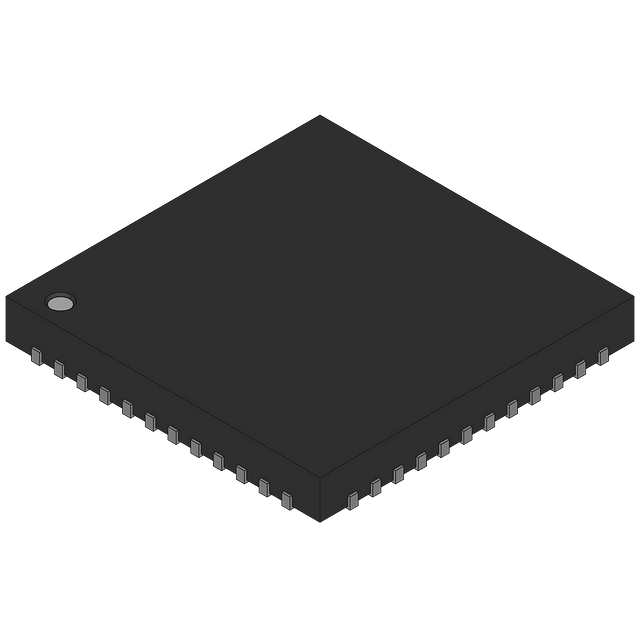

Product Images
