14-bit, 250MS/s Analog-to-Digital Converter (ADC) with a single differential input channel. Features LVDS, Serial, and Parallel interfaces, 5LSB Integral Nonlinearity (INL), and 69dB Signal-to-Noise Ratio (SNR). Operates from a 1.7V to 1.9V supply voltage with a maximum power dissipation of 180mW. Packaged in a 7x7mm VQFN with gold contact plating, suitable for surface mounting.
PackageVQFN
Current99.5mA
MountingSurface Mount
Power350mW
Quick Jump:
Technical Specifications
Texas Instruments ADS41B49IRGZ25 technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 250MS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 5LSB |
| Interface | LVDS, Serial, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 350mW |
| Power Dissipation | 180mW |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 250MS/s |
| Signal to Noise Ratio (SNR) | 69dB |
| Supply Current | 99.5mA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS41B49IRGZ25 Datasheet
Download the complete datasheet for Texas Instruments ADS41B49IRGZ25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

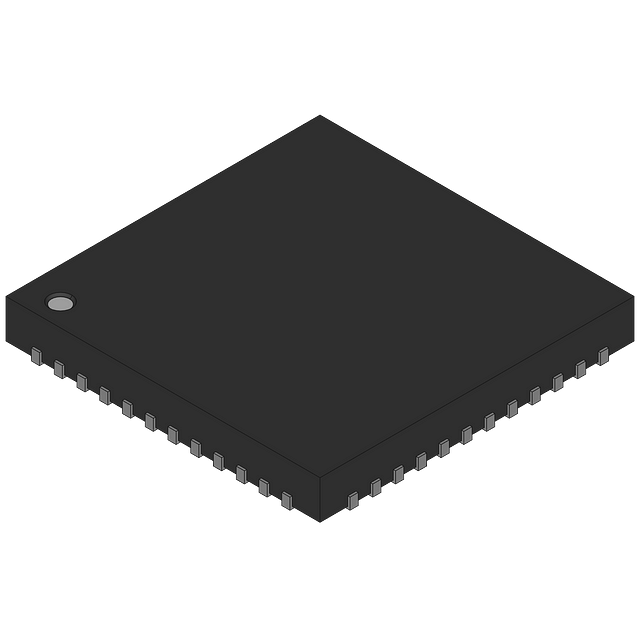

Product Images
