Dual 12-bit Analog-to-Digital Converter (ADC) with a 250MS/s sampling rate. Features differential input type, LVDS and serial/parallel interface options, and 70.5dB Signal-to-Noise Ratio (SNR). Operates with a 1.7V to 1.9V supply voltage and offers low power consumption up to 470mW. Packaged in a 64-VQFN with gold contact plating, suitable for surface mounting. Extended operating temperature range from -40°C to 85°C.
PackageVQFN
Current167mA
MountingSurface Mount
Power470mW
Quick Jump:
Technical Specifications
Texas Instruments ADS4229IRGC25 technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 250MS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | LVDS, Serial, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 470mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 250MS/s |
| Signal to Noise Ratio (SNR) | 70.5dB |
| Supply Current | 167mA |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS4229IRGC25 Datasheet
Download the complete datasheet for Texas Instruments ADS4229IRGC25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

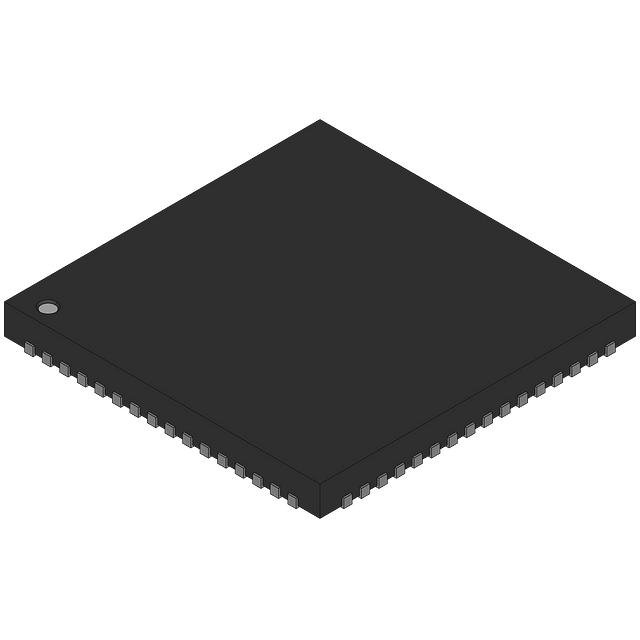

Product Images
