Eight-channel, 12-bit analog-to-digital converter (ADC) with a 50 MS/s conversion rate. Features differential inputs, LVDS and parallel interfaces, and a bipolar polarity. Operates from a 3V to 3.6V supply voltage with a typical power consumption of 512mW. Integral nonlinearity is 1.5 LSB and differential nonlinearity is 0.75 LSB, with a signal-to-noise ratio of 70 dB. Packaged in a 12mm x 12mm x 1mm HTQFP with gold contact plating for surface mounting.
PackageHTQFP
Current119mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS5281IPFP technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 50MS/s |
| Differential Nonlinearity | 0.75LSB |
| Height | 1mm |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 649.5mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 8 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Number of Converters | 8 |
| Number of Elements | 8 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 512mW |
| Power Dissipation | 530mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 50MS/s |
| Signal to Noise Ratio (SNR) | 70dB |
| Supply Current | 119mA |
| Supply Type | Analog, Digital |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5281IPFP Datasheet
Download the complete datasheet for Texas Instruments ADS5281IPFP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

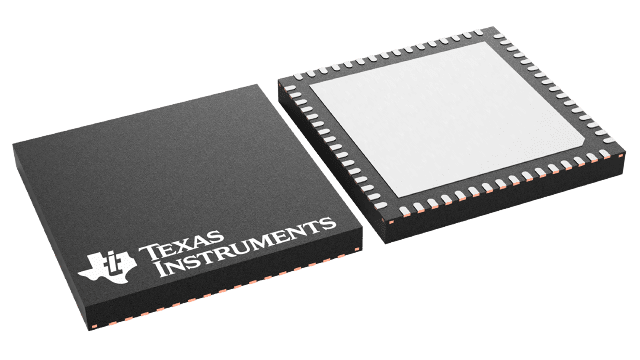

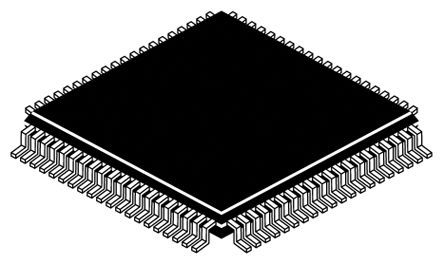

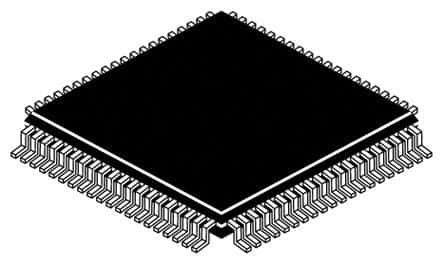

Product Images
