12-bit, 500 MSPS Analog-to-Digital Converter (ADC) featuring a differential input and DDR, LVDS interface. This unipolar converter offers 60.6 dB Signal to Noise Ratio (SNR) and 80 dB Spurious-free dynamic range (SFDR). Operates from a 1.7V to 3.45V supply range with a typical power consumption of 1.04W. Packaged in a 196-NFBGA with copper, tin, and silver contact plating, suitable for industrial applications with an operating temperature range of -40°C to 85°C.
PackageLFBGA
PolarityUnipolar
Power1.04W
Quick Jump:
Technical Specifications
Texas Instruments ADS5403IZAYR technical specifications.
General
| Package/Case | LFBGA |
| Contact Plating | Copper, Tin, Silver |
| Differential Nonlinearity | 0.9LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 5LSB |
| Interface | DDR, LVDS |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.2W |
| Max Supply Voltage (DC) | 1.9V |
| Min Supply Voltage (DC) | 1.7V |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 1.7V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 1.04W |
| Power Dissipation | 1.04W |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500MS/s |
| Series | ADS5403 |
| Signal to Noise Ratio (SNR) | 60.6dB |
| Spurious-free dynamic range (SFDR) | 80dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5403IZAYR Datasheet
Download the complete datasheet for Texas Instruments ADS5403IZAYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

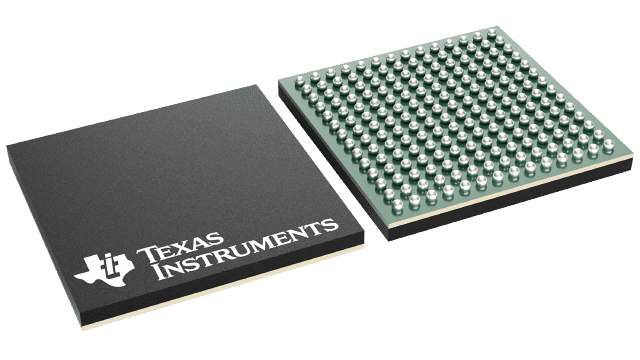

Product Images
