14-bit Analog-to-Digital Converter (ADC) with a 62 MS/s sampling rate. Features differential input and LVDS/Parallel interface. Operates with a 3V to 5V supply voltage range and offers a signal-to-noise ratio of 73dB and SFDR of 85dB. Packaged in a 64-LQFP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageLQFP
Current240mA
Power1.2W
Quick Jump:
Technical Specifications
Texas Instruments ADS5422Y/250 technical specifications.
General
Package/Case
LQFP
Conversion Rate
62000KS/s
Input Type
DIFFERENTIAL
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.4W
Max Supply Voltage (DC)
5V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of Analog Inputs
1
Number of Bits
14
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Power Consumption
1.2W
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
62MS/s
Signal to Noise Ratio (SNR)
73dB
Spurious-free dynamic range (SFDR)
85dB
Supply Current
240mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS5422Y/250 Datasheet
Download the complete datasheet for Texas Instruments ADS5422Y/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

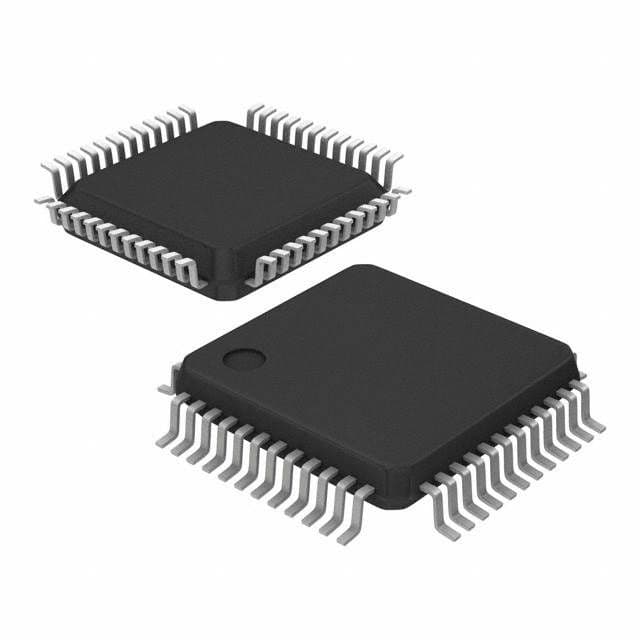

Product Images
