13-bit, 250 MSPS analog-to-digital converter (ADC) with a 69.3dB Signal-to-Noise Ratio (SNR). Features differential inputs, LVDS and parallel interfaces, and a bipolar polarity. Operates from a 4.75V to 5.25V supply voltage with a nominal supply current of 340mA. This surface mount device is housed in an 80-HTQFP package with gold contact plating, suitable for operation between -40°C and 85°C.
PackageHTQFP
MountingSurface Mount
PolarityBipolar
Power2.25W
Quick Jump:
Technical Specifications
Texas Instruments ADS5444IPFPR technical specifications.
General
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 250000KS/s |
| Differential Nonlinearity | 1LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.2LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.28W |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 340mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 13 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 2.25W |
| Power Dissipation | 2W |
| Resolution | 13b |
| RoHS Compliant | Yes |
| Sampling Rate | 250MS/s |
| Signal to Noise Ratio (SNR) | 69.3dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS5444IPFPR Datasheet
Download the complete datasheet for Texas Instruments ADS5444IPFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

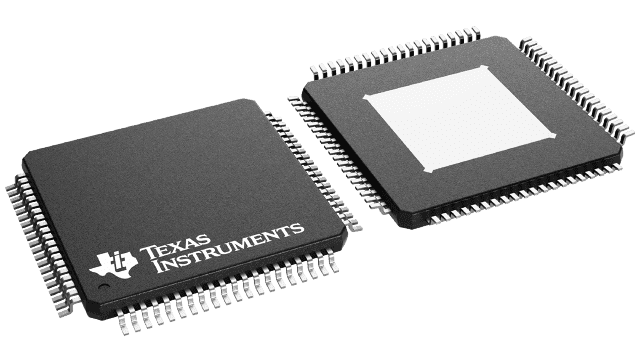

Product Images
