12-bit, 750MS/s Analog-to-Digital Converter (ADC) with a single differential analog input. Features include 61.2dB Signal-to-Noise Ratio (SNR), ±2 Least Significant Bit (LSB) Differential Nonlinearity (DNL), and ±5 LSB Integral Nonlinearity (INL). Operates with DDR and LVDS interfaces, supporting analog, digital, and single supply types. Packaged in a 160-pin LFBGA for surface mounting, with a temperature range of -40°C to 85°C and a maximum power dissipation of 1.75W.
PackageLFBGA
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Texas Instruments ADS54T01IZAY technical specifications.
General
| Package/Case | LFBGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 750MS/s |
| Differential Nonlinearity | 2LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 5LSB |
| Interface | DDR, LVDS |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.75W |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 160 |
| Packaging | Rail/Tube |
| Power Consumption | 1.2W |
| Power Dissipation | 1.75W |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 750000000S/s |
| Signal to Noise Ratio (SNR) | 61.2dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS54T01IZAY Datasheet
Download the complete datasheet for Texas Instruments ADS54T01IZAY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

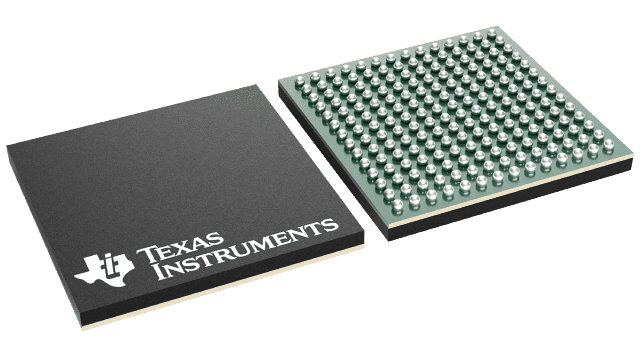

Product Images
