12-bit, 80 MSPS Analog-to-Digital Converter (ADC) with a single differential input channel. Features a 12-bit resolution and a sampling rate of 80 MS/s, offering 71.8 dB Signal-to-Noise Ratio (SNR) and 2 LSB Integral Nonlinearity (INL). Operates from a 3V to 3.6V supply voltage with a nominal supply current of 94mA, consuming 318mW of power. Supports DDR, LVDS, and Parallel interfaces for flexible integration. Packaged in a 32-VQFN with gold contact plating, suitable for surface mounting and operating within a -40°C to 85°C temperature range.
PackageQFN
MountingSurface Mount
PolarityBipolar
Power318mW
Quick Jump:
Technical Specifications
Texas Instruments ADS6123IRHBT technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Conversion Rate | 80000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | DDR, LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 440mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 94mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 318mW |
| Power Dissipation | 318mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 80MS/s |
| Signal to Noise Ratio (SNR) | 71.8dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS6123IRHBT Datasheet
Download the complete datasheet for Texas Instruments ADS6123IRHBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

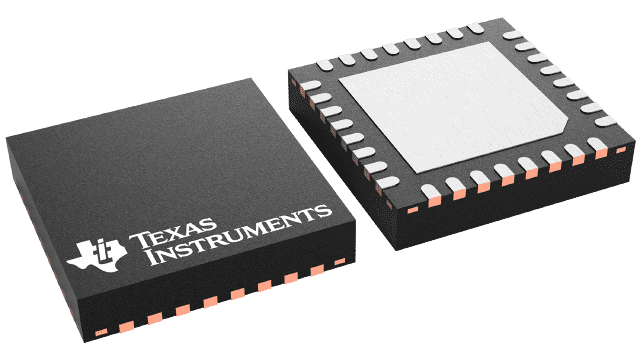

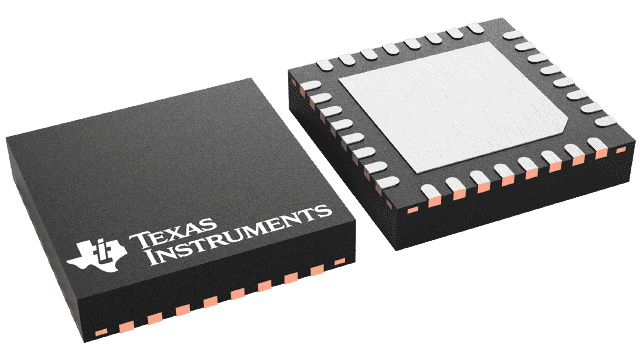

Product Images
