14-bit, 1-channel Analog-to-Digital Converter (ADC) with a 125 MSPS sampling rate. Features differential input, LVDS, serial, 3-wire, and parallel interfaces. Offers 4.5 LSB Integral Nonlinearity (INL) and 74.5 dB Signal-to-Noise Ratio (SNR). Operates from a 3V to 3.6V supply, with a maximum power dissipation of 625mW. Packaged in a 5x5mm QFN with gold contact plating, suitable for surface mounting.
PackageQFN
MountingSurface Mount
Power417mW
Quick Jump:
Technical Specifications
Texas Instruments ADS6145IRHBR technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Conversion Rate | 125000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4.5LSB |
| Interface | LVDS, Serial, 3-WIRE, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 625mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Consumption | 417mW |
| Power Dissipation | 417mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 125000000S/s |
| Signal to Noise Ratio (SNR) | 74.5dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS6145IRHBR Datasheet
Download the complete datasheet for Texas Instruments ADS6145IRHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

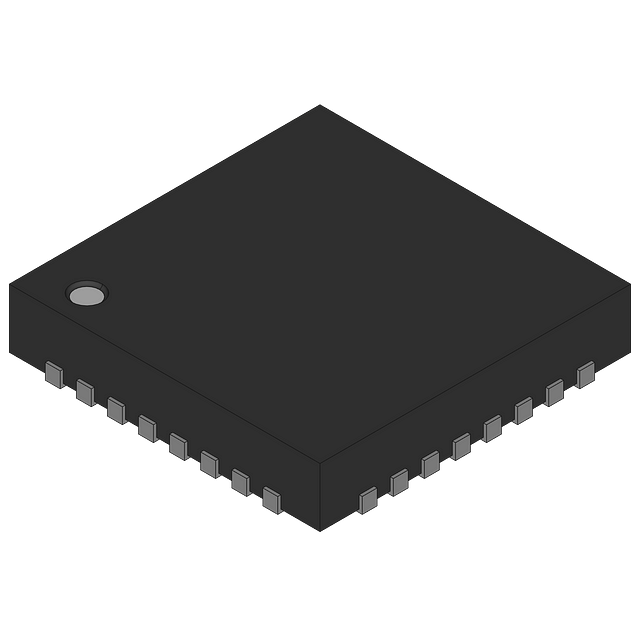

Product Images
