Quad-channel, 14-bit analog-to-digital converter (ADC) with an 80 MSPS sampling rate. Features differential inputs, LVDS serial interface, and a VQFN package with gold contact plating. Offers 74.4 dB signal-to-noise ratio and 4.5 LSB integral nonlinearity. Operates from a 3V to 3.6V supply voltage with a maximum power dissipation of 1.3W. Suitable for surface mounting and available on tape and reel.
PackageVQFN
MountingSurface Mount
Power1.18W
Quick Jump:
Technical Specifications
Texas Instruments ADS6443IRGCT technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 80000KS/s |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 4.5LSB |
| Interface | LVDS, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.3W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 360mA |
| Number of A/D Converters | 4 |
| Number of Analog Inputs | 4 |
| Number of Bits | 14 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of Inputs | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 1.18W |
| Power Dissipation | 1.18W |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 80000000S/s |
| Signal to Noise Ratio (SNR) | 74.4dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS6443IRGCT Datasheet
Download the complete datasheet for Texas Instruments ADS6443IRGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

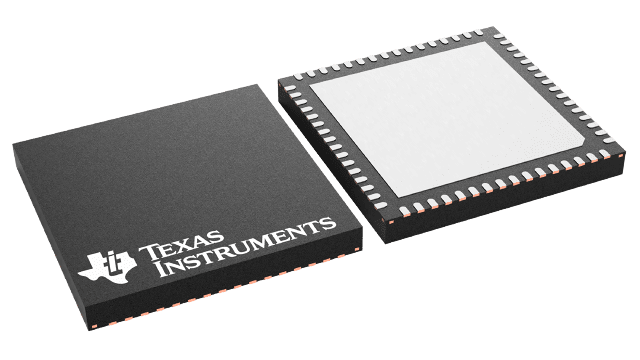

Product Images
