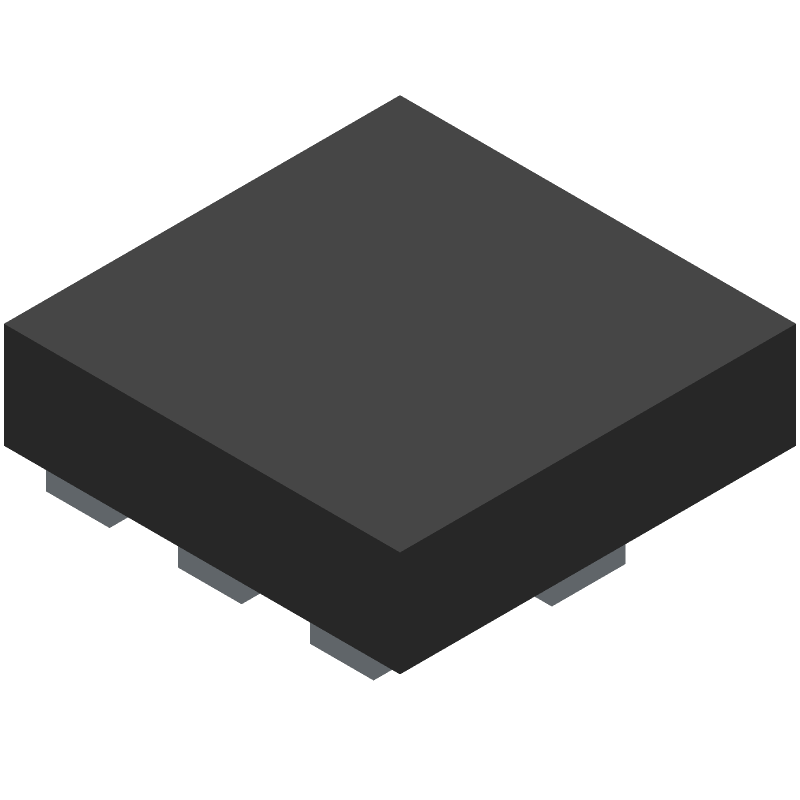

14-bit, 1MSPS Successive Approximation Analog-to-Digital Converter (ADC) with differential input. Features a maximum supply voltage of 3.3V and a minimum of 1.65V, with a maximum analog input voltage of 3.6V and a minimum of -1.65V. This automotive-grade component operates within a temperature range of -40°C to 125°C and has a maximum supply current of 0.56mA. Packaged in an 8-terminal, 1.5mm x 1.5mm S-PQCC-N8 (QUAD) package.
Quick Jump:
Technical Specifications
Texas Instruments ADS7054IRUGR technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 8 |
| Min Operating Temperature | -40 |
| Terminal Position | QUAD |
| JEDEC Package Code | S-PQCC-N8 |
| Width | 1.5 |
| Length | 1.5 |
| Number of Functions | 1 |
| Temperature Grade | AUTOMOTIVE |
| Supply Current-Max | 0.56 |
| Supply Voltage-Nom | 3.3 |
| Supply Voltage-Min | 1.65 |
| Number of Bits | 14 |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| Analog Input Voltage-Max | 3.6 |
| Analog Input Voltage-Min | -1.65 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Texas Instruments ADS7054IRUGR Datasheet
Download the complete datasheet for Texas Instruments ADS7054IRUGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
