12-bit, 100 kS/s CMOS Analog-to-Digital Converter (ADC) with a 10µs conversion time. Features single-ended input, bipolar polarity, and a parallel interface. Offers 0.45 LSB integral and differential nonlinearity, with a 72 dB signal-to-noise ratio. Operates from a 4.75V to 5.25V supply, consuming 81.5mW. Packaged in a 28-pin SOIC with gold contact plating, suitable for surface mounting.
PackageSOIC
Current16mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS7804UB technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Conversion Rate
100KS/s
Differential Nonlinearity
0.45LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
0.45LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
20
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
81.5mW
Power Dissipation
100mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
72dB
Supply Current
16mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7804UB Datasheet
Download the complete datasheet for Texas Instruments ADS7804UB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

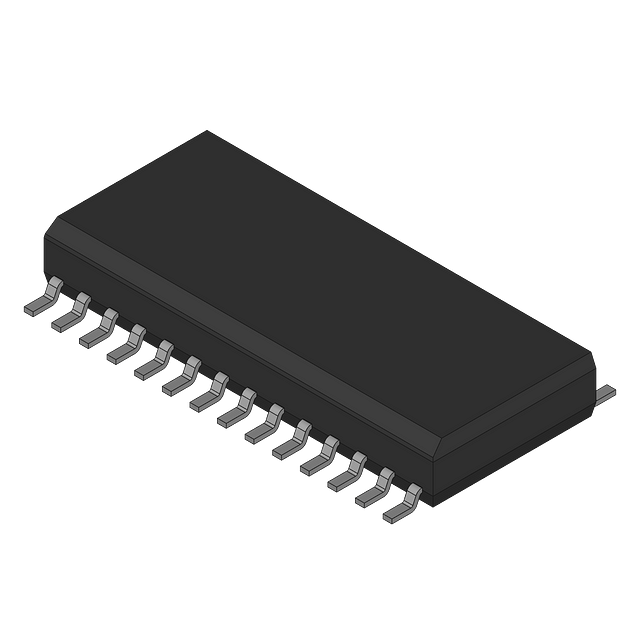

Product Images
