16-bit Analog-to-Digital Converter (ADC) with a 250 kS/s conversion rate. Features a single-ended input and a parallel interface. Offers 4 LSB integral nonlinearity and 2 LSB differential nonlinearity. Operates with a dual supply voltage ranging from 4.75V to 5.25V. Packaged in a 28-pin SOIC with gold contact plating. RoHS compliant and suitable for operation between -25°C and 85°C.
PackageSOIC
PolarityBipolar
Power200mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7815UE4 technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Conversion Rate | 250KS/s |
| Differential Nonlinearity | 2LSB |
| Dual Supply Voltage | 5V |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | -4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Consumption | 200mW |
| Power Dissipation | 200mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 250KS/s |
| Signal to Noise Ratio (SNR) | 82dB |
| Spurious-free dynamic range (SFDR) | 100dB |
| Supply Type | Dual |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7815UE4 Datasheet
Download the complete datasheet for Texas Instruments ADS7815UE4 to view detailed technical specifications.
No datasheet is available for this part.

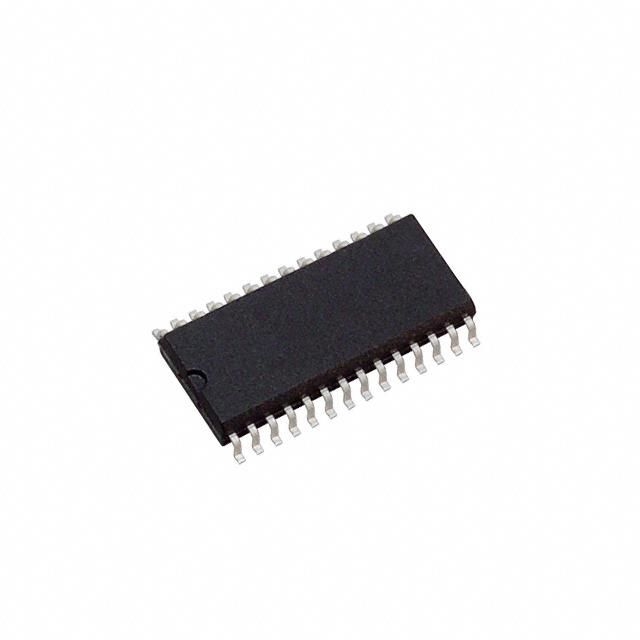

Product Images
