12-bit, 8-channel SAR Analog-to-Digital Converter (ADC) with a 50 kS/s conversion rate. Features 1 LSB Integral Nonlinearity (INL) and Differential Nonlinearity (DNL), a 72 dB Signal-to-Noise Ratio (SNR), and 86 dB Spurious-Free Dynamic Range (SFDR). Operates from a 2.7V to 5.25V supply with a typical supply current of 750 µA and 5 mW power dissipation. Includes an internal reference and I²C interface, housed in a 16-TSSOP package. Suitable for operation between -40°C and 85°C.
PackageTSSOP
Current750uA
PolarityUnipolar
Power5mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7828EB/250 technical specifications.
General
Package/Case
TSSOP
Conversion Rate
50KS/s
Differential Nonlinearity
1LSB
Integral Nonlinearity (INL)
1LSB
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
5mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
50KS/s
Signal to Noise Ratio (SNR)
72dB
Spurious-free dynamic range (SFDR)
86dB
Supply Current
750uA
Thickness
1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7828EB/250 Datasheet
Download the complete datasheet for Texas Instruments ADS7828EB/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

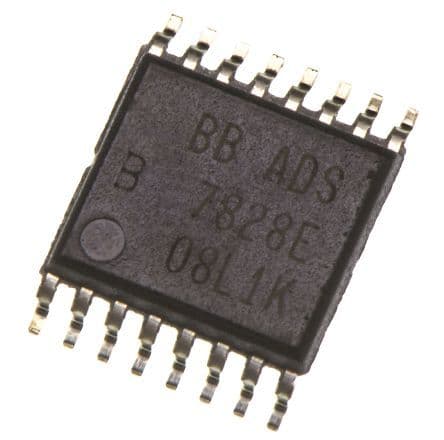

Product Images
