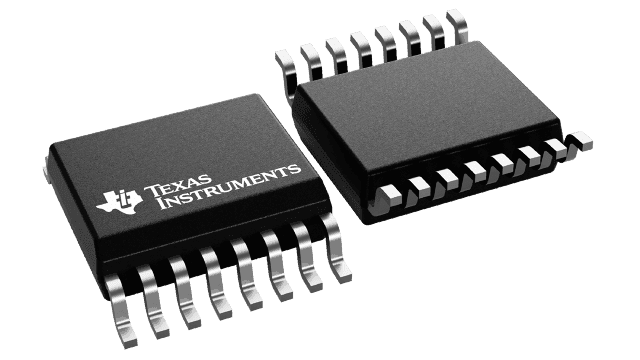

12-bit, 4-channel analog-to-digital converter (ADC) with serial output. Features a 200 kS/s conversion rate, 1 LSB integral nonlinearity, and 1 LSB differential nonlinearity. Offers a signal-to-noise ratio of 72 dB and spurious-free dynamic range of 81 dB. Operates from a 2.7V to 5.25V single supply voltage with a maximum power dissipation of 4.5mW. Packaged in a 16-SSOP with gold contact plating, this RoHS compliant component is supplied on tape and reel.
PackageSSOP
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS7841EB/2K5 technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Conversion Rate
200KS/s
Differential Nonlinearity
1LSB
Full Scale Error
3LSB
Integral Nonlinearity (INL)
1LSB
Interface
Serial
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
4.5mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.25V
Min Supply Voltage
2.7V
Nominal Supply Current
550uA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Unipolar
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200000S/s
Signal to Noise Ratio (SNR)
72dB
Spurious-free dynamic range (SFDR)
81dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7841EB/2K5 Datasheet
Download the complete datasheet for Texas Instruments ADS7841EB/2K5 to view detailed technical specifications.
