Texas Instruments
ADS7841ES/2K5G4
12-Bit, 4-Channel Serial Output Sampling Analog-to-Digital Converter 16-SSOP
PackageSSOP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS7841ES/2K5G4 technical specifications.
General
| Package/Case | SSOP |
| Conversion Rate | 200KS/s |
| Interface | Serial, SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.5mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 200000S/s |
| Signal to Noise Ratio (SNR) | 72dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7841ES/2K5G4 Datasheet
Download the complete datasheet for Texas Instruments ADS7841ES/2K5G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

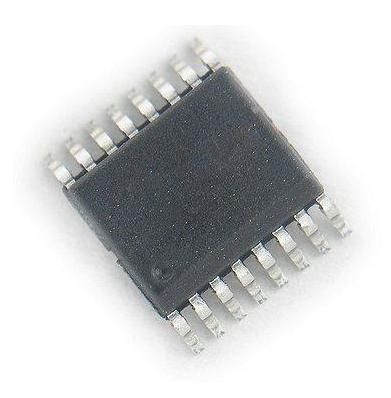

Product Images
