PackageVQFN
Current280uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments ADS7846IRGVR technical specifications.
General
Package/Case
VQFN
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
500uA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
280uA
Weight
0.001464oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7846IRGVR Datasheet
Download the complete datasheet for Texas Instruments ADS7846IRGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

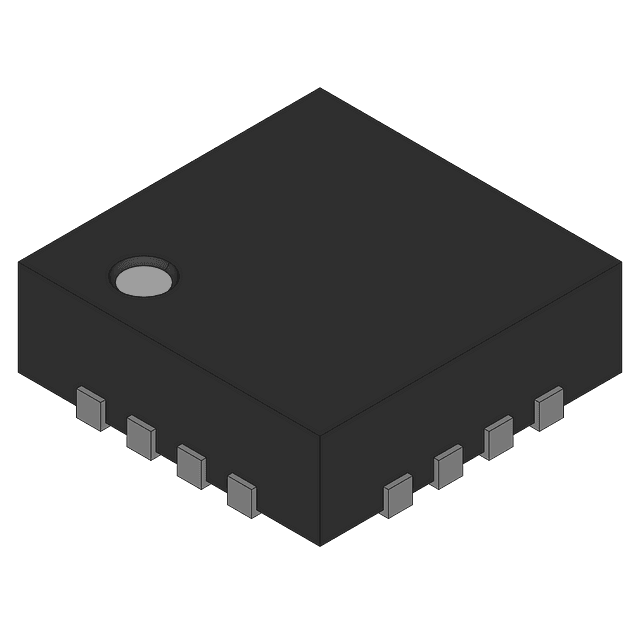

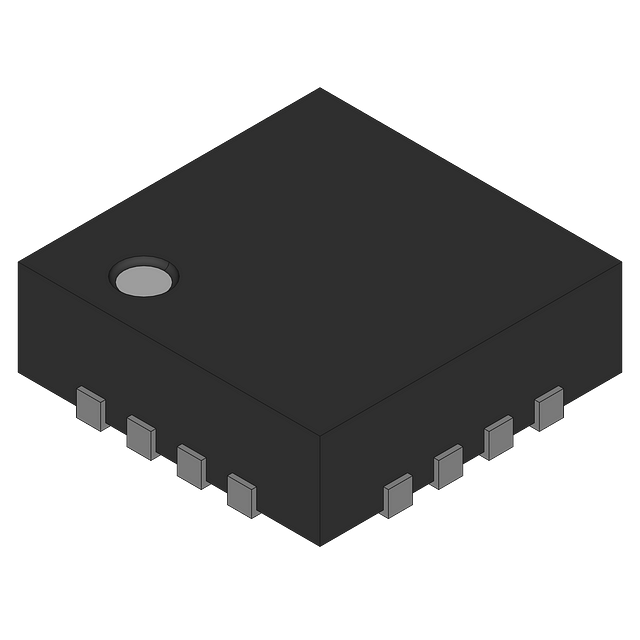

Product Images
