12-bit, 8-channel analog-to-digital converter with a 500 kS/s conversion rate. Features a parallel interface, unipolar input, and single-ended input type. Offers 1 LSB differential nonlinearity and 2 LSB integral nonlinearity. Operates from a 4.75V to 5.25V supply voltage with a typical power consumption of 13mW. Packaged in a 32-TQFP with gold contact plating, suitable for operation between -40°C and 85°C.
PackageTQFP
Current2.6mA
PolarityUnipolar
Power13mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7852Y/250G4 technical specifications.
General
Package/Case
TQFP
Contact Plating
Gold
Conversion Rate
500KS/s
Differential Nonlinearity
1LSB
Full Scale Error
40LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
17.5mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Analog Inputs
8
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
13mW
Power Dissipation
13mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500KS/s
Signal to Noise Ratio (SNR)
72dB
Spurious-free dynamic range (SFDR)
74dB
Supply Current
2.6mA
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS7852Y/250G4 Datasheet
Download the complete datasheet for Texas Instruments ADS7852Y/250G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

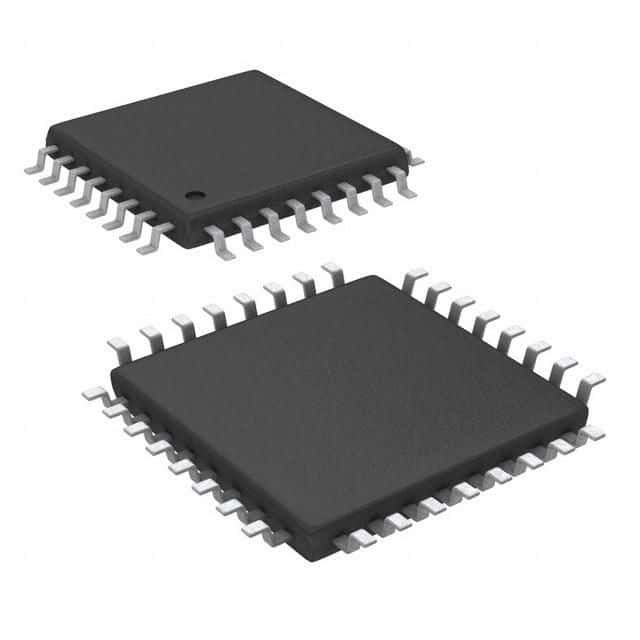

Product Images
