12-bit, 4-channel Analog-to-Digital Converter (ADC) with a 500 kS/s conversion rate. Features differential inputs, bipolar polarity, and a serial interface. Offers 1LSB differential nonlinearity and 2LSB integral nonlinearity. Operates from a 4.75V to 5.25V supply voltage with a typical power consumption of 25mW. Packaged in a 24-QSOP with gold contact plating, suitable for operation between -40°C and 125°C.
PackageSSOP
PolarityBipolar
Power25mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7861EG4 technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Conversion Rate | 500KS/s |
| Differential Nonlinearity | 1LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 42.5mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 5mA |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 4 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 2 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Consumption | 25mW |
| Power Dissipation | 25mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500000S/s |
| Signal to Noise Ratio (SNR) | 71dB |
| Spurious-free dynamic range (SFDR) | 71dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7861EG4 Datasheet
Download the complete datasheet for Texas Instruments ADS7861EG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

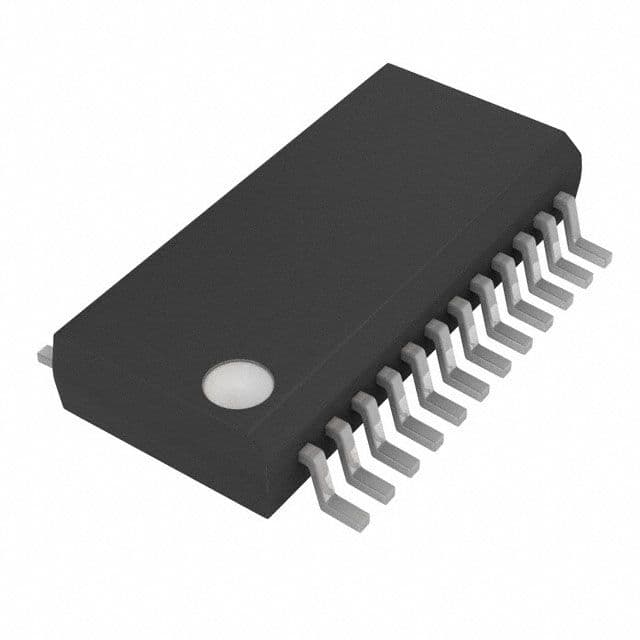

Product Images
