12-bit, 4-channel, dual Analog-to-Digital Converter (ADC) with a 500 kS/s conversion rate. Features differential inputs, parallel interface, and bipolar polarity. Offers 71dB Signal-to-Noise Ratio (SNR) and 78dB Spurious-free dynamic range (SFDR). Operates from a 4.75V to 5.25V supply with 25mW power consumption. Packaged in a 32-pin TQFP with gold contact plating, this lead-free component is supplied on tape and reel.
PackageTQFP
PolarityBipolar
Power25mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7862Y/2KG4 technical specifications.
General
| Package/Case | TQFP |
| Contact Plating | Gold |
| Conversion Rate | 500KS/s |
| Differential Nonlinearity | 0.75LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 40mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 5mA |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 4 |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 25mW |
| Power Dissipation | 25mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 500KS/s |
| Signal to Noise Ratio (SNR) | 71dB |
| Spurious-free dynamic range (SFDR) | 78dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7862Y/2KG4 Datasheet
Download the complete datasheet for Texas Instruments ADS7862Y/2KG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

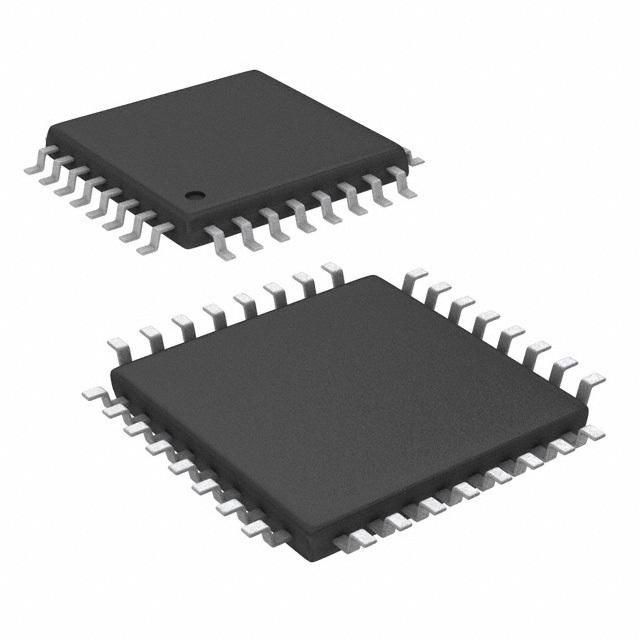

Product Images
