Dual, 12-bit Analog-to-Digital Converter (ADC) with a 2MSPS sampling rate. Features 4 input channels configurable as 2+2 or 3+3, bipolar polarity, and SPI interface. Offers 1LSB differential nonlinearity and 1.25LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply, with typical power consumption of 35.5mW. Packaged in a 24-VQFN with gold contact plating, suitable for surface mounting and operating across a -40°C to 125°C temperature range.
PackageVQFN
MountingSurface Mount
PolarityBipolar
Power35.5mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7863ARGET technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Differential Nonlinearity | 1LSB |
| Integral Nonlinearity (INL) | 1.25LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 45.3mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 12 |
| Number of Elements | 2 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 35.5mW |
| Power Dissipation | 35.5mW |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 2MS/s |
| Signal to Noise Ratio (SNR) | 71.5dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7863ARGET Datasheet
Download the complete datasheet for Texas Instruments ADS7863ARGET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

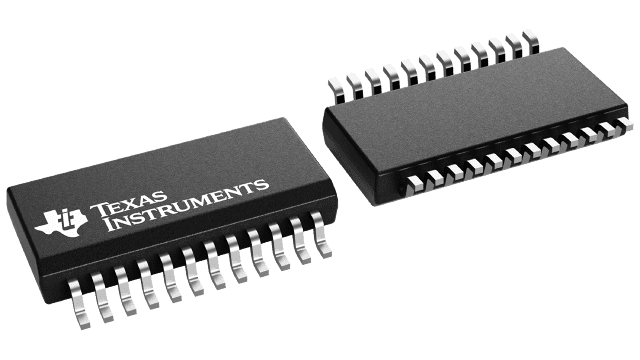

Product Images
