14-bit Analog-to-Digital Converter (ADC) with 8 input channels, offering a 48 kS/s conversion rate and 2 LSB Integral Nonlinearity. Features an SPI interface and a unipolar, single supply operation from 2.7V to 5.5V. This component boasts low power consumption at 4.6mW and is housed in a 28-pin SSOP package with gold contact plating. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
PackageSSOP
Current1.7mA
PolarityUnipolar
Power4.6mW
Quick Jump:
Technical Specifications

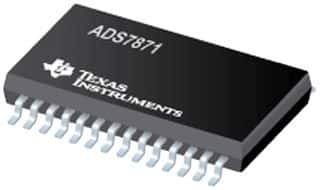

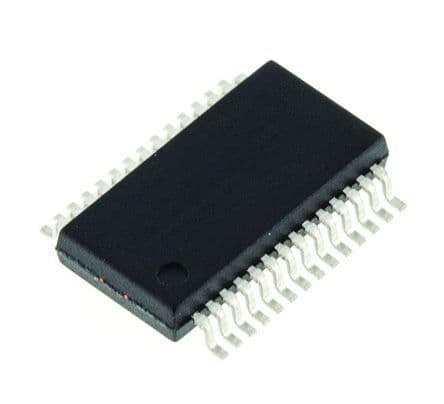

Texas Instruments ADS7871IDB technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Conversion Rate | 48KS/s |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 11mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of A/D Converters | 1 |
| Number of Bits | 14 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Power Consumption | 4.6mW |
| Power Dissipation | 8.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 48KS/s |
| Supply Current | 1.7mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7871IDB Datasheet
Download the complete datasheet for Texas Instruments ADS7871IDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
