10-bit, 3MSPS serial Analog-to-Digital Converter (ADC) with a single-ended input. Features a 2.7V to 5.5V operating supply voltage, 0.8 LSB integral nonlinearity (INL), and 1 LSB full-scale error. Offers a 60dB signal-to-noise ratio (SNR) and operates over a -40°C to 125°C temperature range. Packaged in a 6-SOT-23 for surface mounting, with gold contact plating and SPI interface.
PackageSOT-23
MountingSurface Mount
PolarityUnipolar
Power15mW
Quick Jump:
Technical Specifications
Texas Instruments ADS7884SDBVR technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Gold |
| Conversion Rate | 3000KS/s |
| Differential Nonlinearity | 0.8LSB |
| Full Scale Error | 1LSB |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 0.8LSB |
| Interface | SPI |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 20mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 15mW |
| Power Dissipation | 15mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 3MS/s |
| Signal to Noise Ratio (SNR) | 60dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS7884SDBVR Datasheet
Download the complete datasheet for Texas Instruments ADS7884SDBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

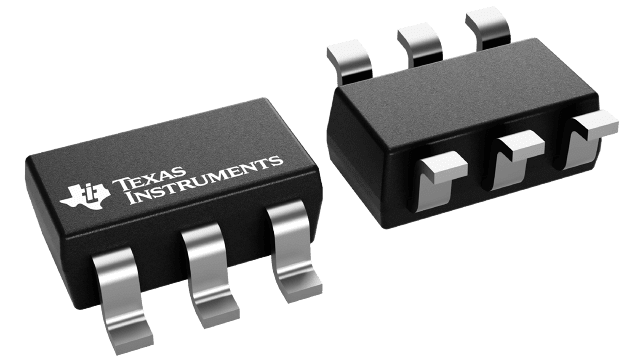

Product Images
